產品簡介

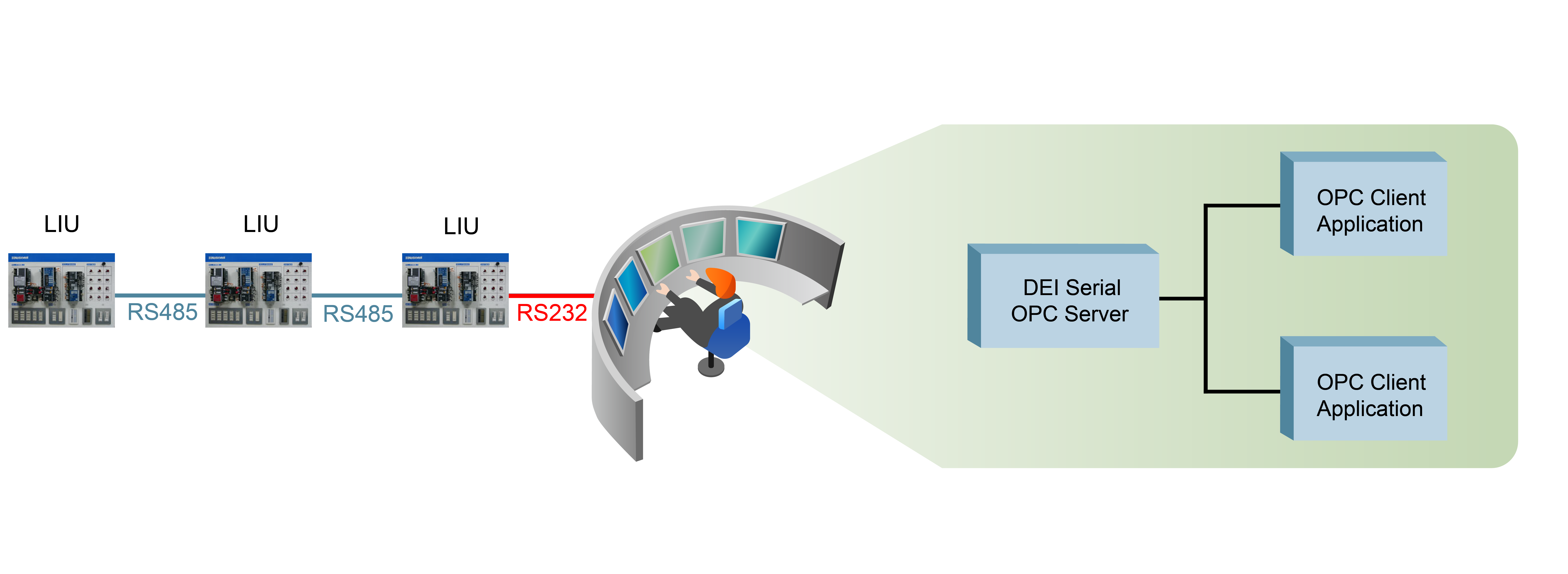

MatsushidaTwo Way Lighting Controller is a must for an Intelligent Building. Matsushida Two Way Lighting Controller consists of NCU (controlling center) and LIU. One NCU could be connected with 32 LIU, so that users can know the timely condition of LIU through NCU. Matsushida Two WayOPC Server was developed by OPCTechs Technology Corporation basing on the standard OPC 2.0 Specification. We developed the packaged software especially for integrating devices with Windows system.
通信協定
MatsuTwoWay Protocol
- Key features of the OPC Server 320 include:
- Compliant with the latest OPC Data Access 1.0, 2.0 standards.
- Tag multiplier allows you to create hundreds of tags in seconds.
- Tags can be grouped in logical folders for manageability.
- Value simulation for any data item in the OPC server.
- Tags support configurable range information.
- Flexible configuration for numerous tags.
- Tags have configurable alarm conditions.
產品特色
支援硬體
| Model Name | CPU | Serial |
|---|---|---|
| NCU | WR3387 |
系統需求
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| IBM Compatible Computer | Memory | 2 GB RAM at least |
| IBM Compatible Computer | HDD space | 10 GB disk space |
| Operating System | Windows 7 Professional 32/64-bit | |
| Operating System | Windows 8 Professional 32/64-bit | |
| Operating System | Windows 10 Professional 32/64-bit | |
| Operating System | Windows 2003 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2008 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2012 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2016 Server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
